Developed by Dunlop and Bob Bradshaw of Custom Audio Electronics
Features dual Fasel inductors with two distinct voices (high-end emphasis or low to mid resonance)
Built-in MXR MC-401 Boost / Line Driver
Choose between inductors and turn the boost on or off with the side-mounted kickswitches; bright LEDs on each side of the wah indicate operation status
True hardwire bypass, a long-life CTS potentiometer, and internal pots for "Q" and gain adjustments
CAE WAH

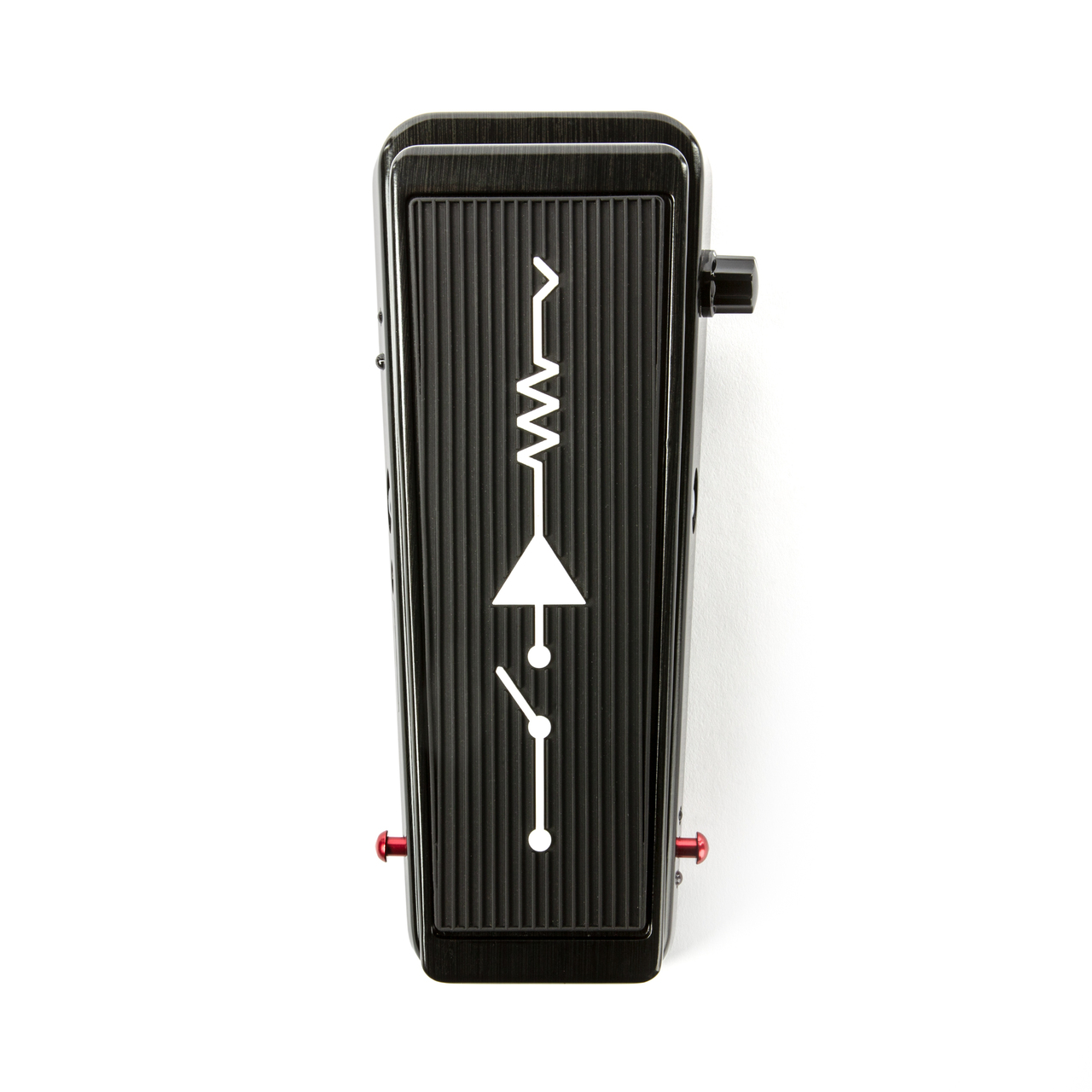

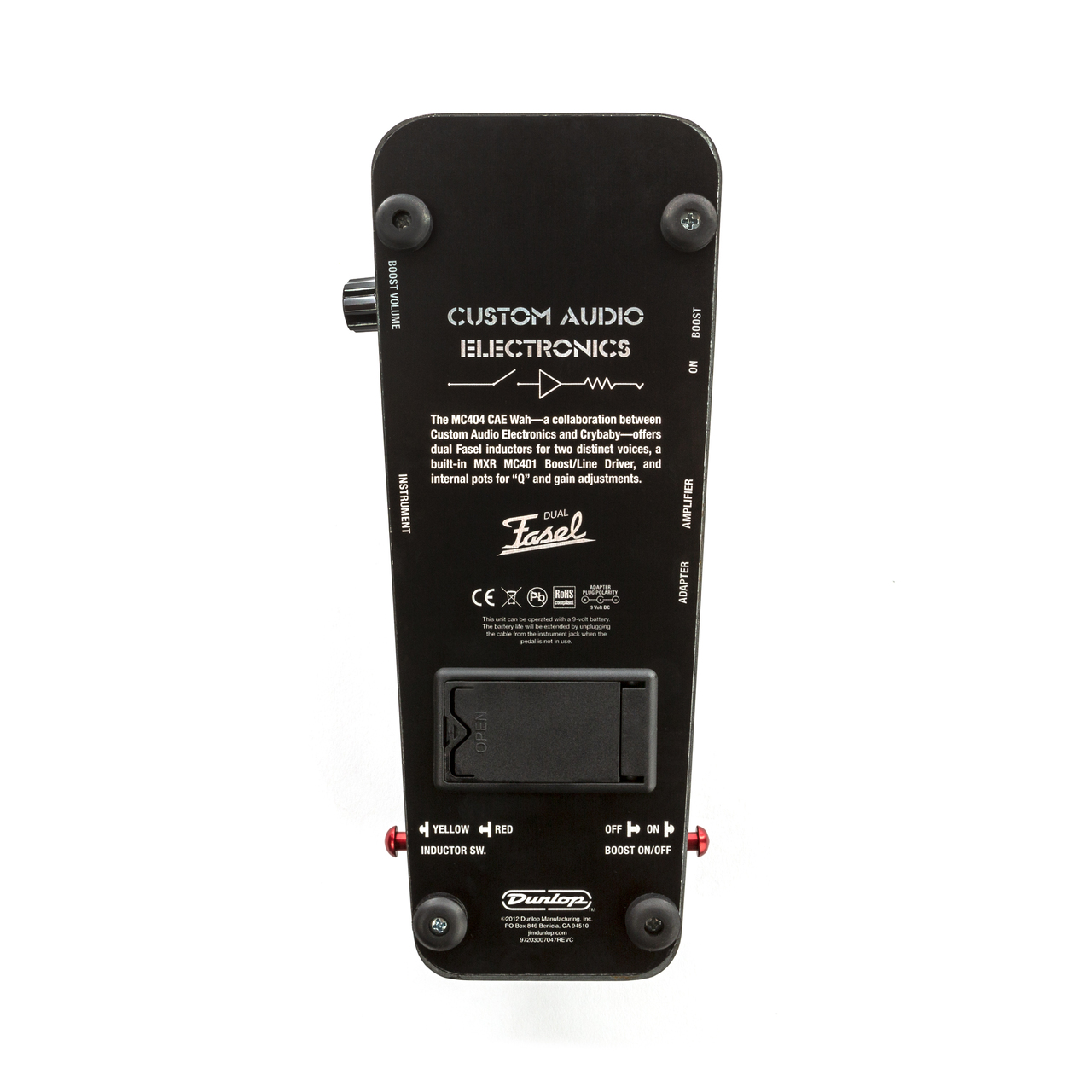

The MC404 CAE Wah was developed by Bob Bradshaw of Custom Audio Electronics and the Cry Baby design team with the goal of creating a highly versatile wah-wah of top-grade components. It features dual Fasel inductors with two distinct voices (high-end emphasis or low to mid resonance), and a built-in MXR MC401 Boost/LineDriver adds even more flexibility. Choose between inductors and turn the boost on or off with the side-mounted kickswitches; bright LEDs on each side of the wah indicate operation status. The MC404 boasts true hardwire bypass, a long-life CTS potentiometer, and internal pots for "Q" and gain adjustments.
Developed by Dunlop and Bob Bradshaw of Custom Audio Electronics
Features dual Fasel inductors with two distinct voices (high-end emphasis or low to mid resonance)
Built-in MXR MC-401 Boost / Line Driver
Choose between inductors and turn the boost on or off with the side-mounted kickswitches; bright LEDs on each side of the wah indicate operation status
True hardwire bypass, a long-life CTS potentiometer, and internal pots for "Q" and gain adjustments

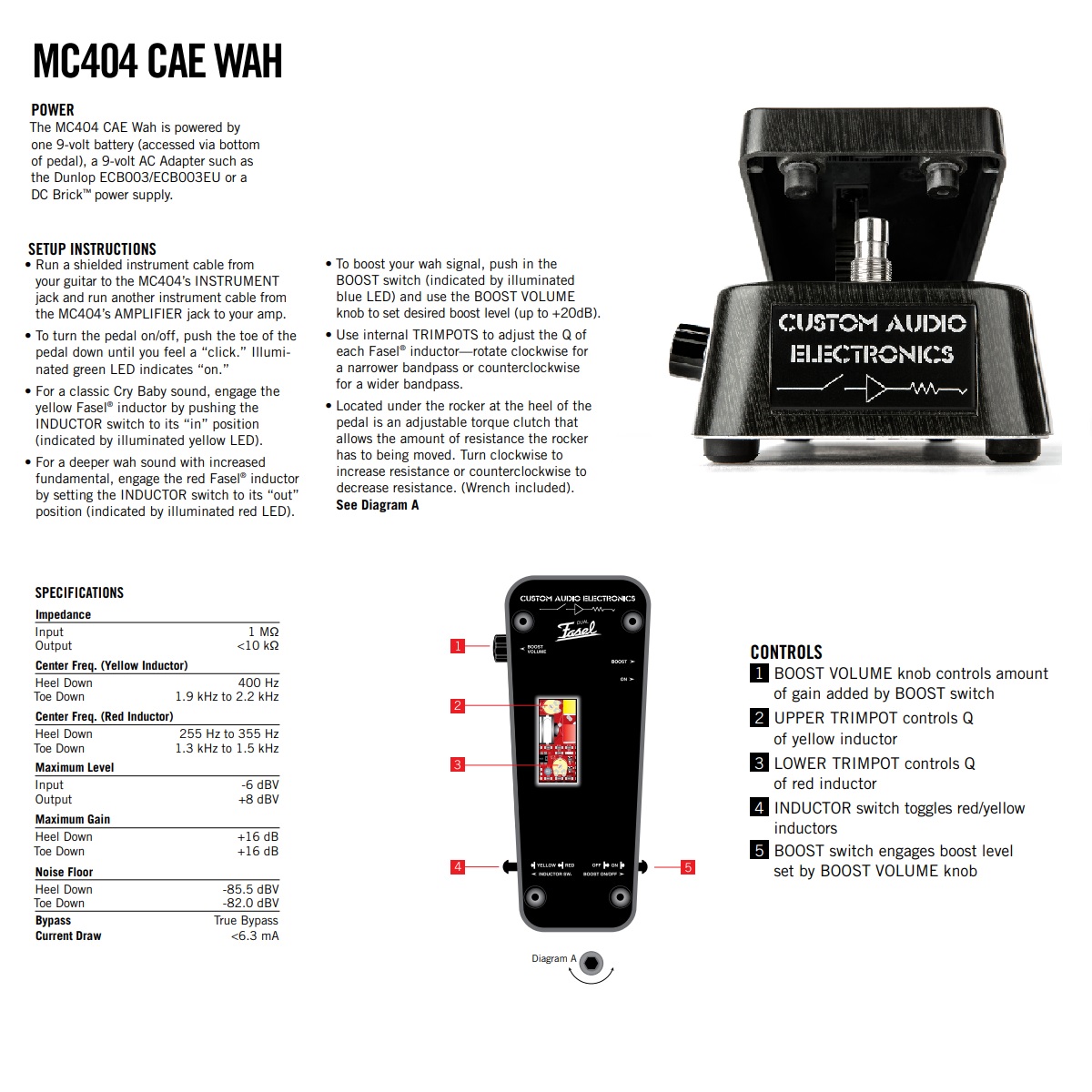

CONTROLS
BOOST VOLUME knob controls amount of gain added by BOOST switch
UPPER TRIMPOT controls Q of yellow inductor
LOWER TRIMPOT controls Q of red inductor
INDUCTOR switch toggles red/yellow inductors
BOOST switch engages boost level set by BOOST VOLUME knob
