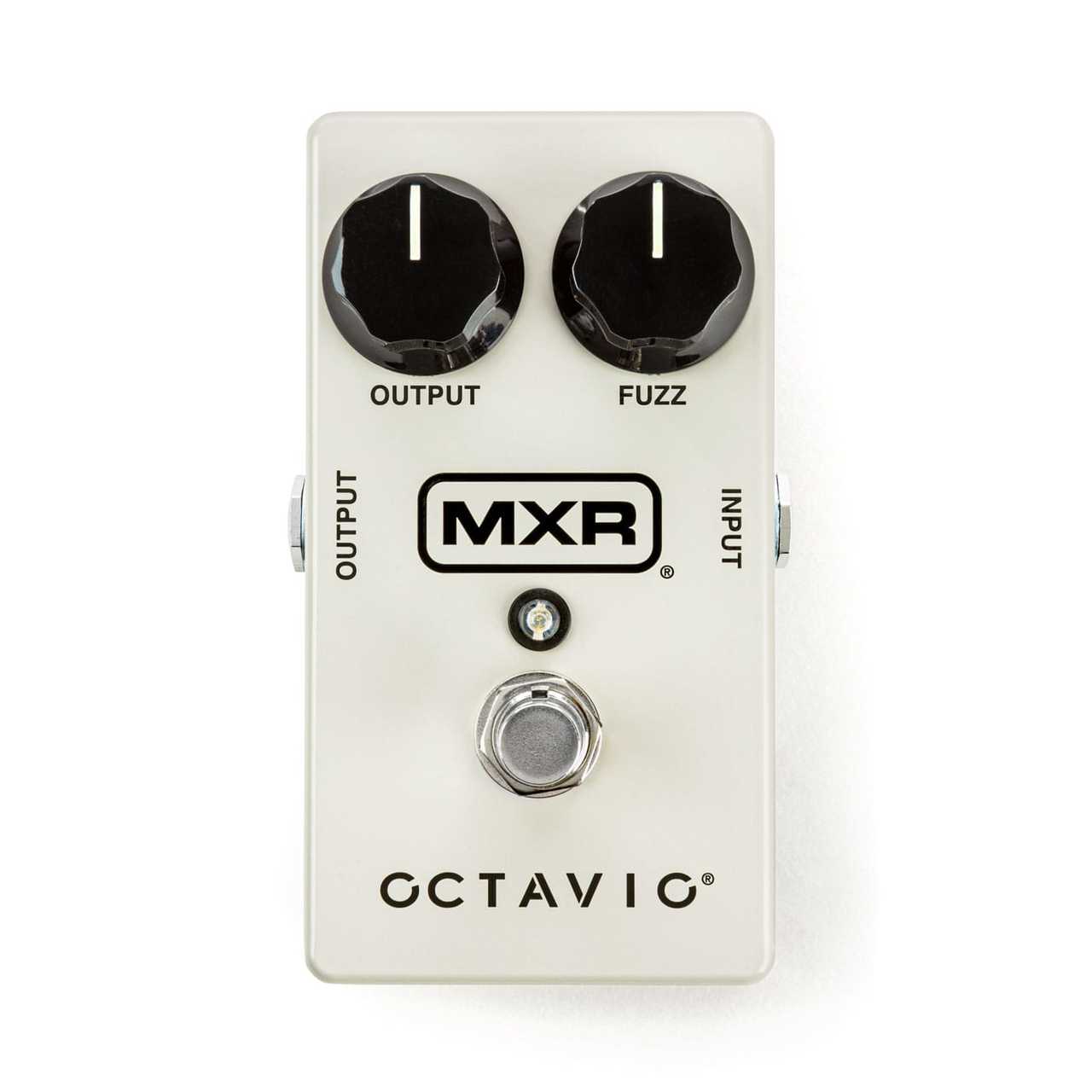

Explore the furthest reaches of silicon saturation in a trusted vessel with the MXR Octavio Fuzz. Just set the Level and Fuzz controls to your desired volume and intensity, and allow your picking and plucking dynamics to coax out the pedal’s legendarily searing, synth-like tones.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
- Unique octave-up fuzz pedal made famous by Jimi Hendrix
- Adds a wash of vibrant upper harmonics to the fuzz signal
- Simple two-knob design contains a huge range of tone-shaping possibilities
- Equipped with an On/Bypass LED indicator and AC power jack
- Housed in a rugged all-metal chassis
THE LONG STORY
Made famous by Jimi Hendrix, the Octavio Fuzz and its touch-responsive octave-up saturation continue to be employed by modern players, from straight-up rockers to low ’n’ slow doomsayers. For the first time ever, that iconic effect has joined the MXR standard line. The layout is as simple as it ever has been—just set the Output and Fuzz controls to your desired volume and intensity, and allow your picking and plucking dynamics to coax out the pedal’s legendarily searing, synth-like tones.
Explore the furthest reaches of silicon saturation in a trusted vessel. Get yourself an MXR Octavio Fuzz.

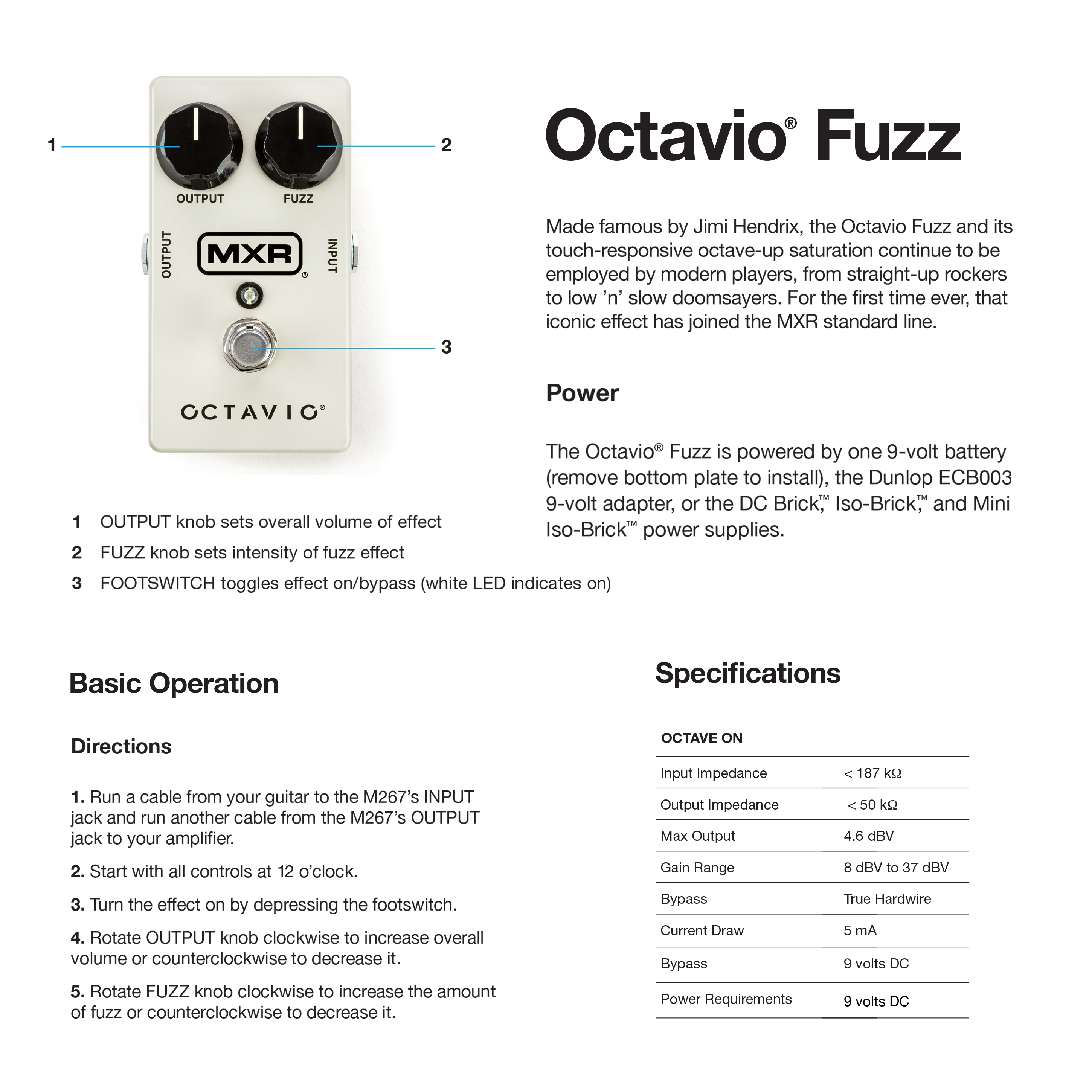

CONTROLS
- OUTPUT knob sets overall volume of effect
- FUZZ knob sets intensity of fuzz effect
- FOOTSWITCH toggles effect on/bypass (white LED indicates on)
DIRECTIONS
- Run a cable from your guitar to the M267’s INPUT jack and run another cable from the M267’s OUTPUT jack to your amplifier.
- Start with all controls at 12 o’clock.
- Turn the effect on by depressing the footswitch.
- Rotate OUTPUT knob clockwise to increase overall volume or counterclockwise to decrease it.
- Rotate FUZZ knob clockwise to increase the amount of fuzz or counterclockwise to decrease it.
SPECIFICATIONS
- Input Impedance < 187 kΩ
- Output Impedance < 50 kΩ
- Max Output 4.6 dBV
- Gain Range 8 dBV to 37 dBV
- Bypass True Hardwire
- Current Draw 5 mA
- Bypass 9 volts DC
- Power Requirements 9 volts DC
